EAGLE TS104 100X100MM MINI BOX TRUSS
$119.90 – $448.80Price range: $119.90 through $448.80
SEND US A MESSAGE
CONTACT INFORMATION

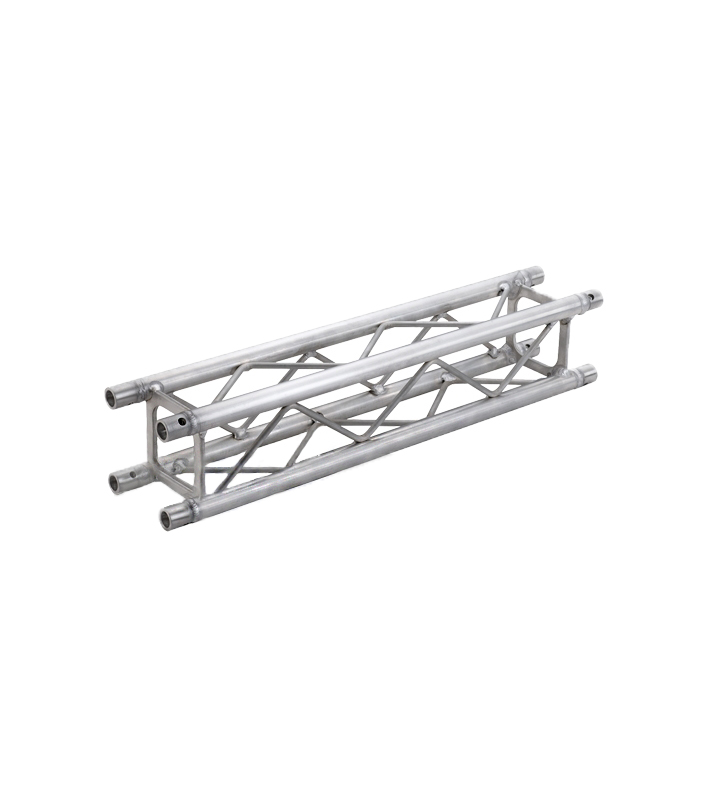

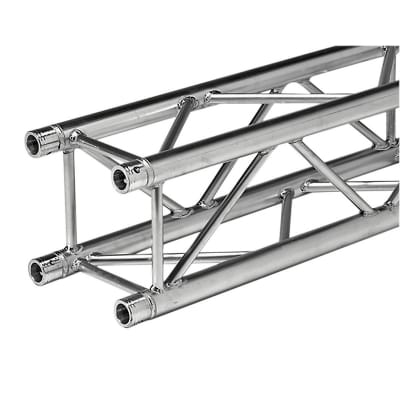

The Eagle TS104 100mm mini box truss is a highly versatile, lightweight decorative trussing solution designed for light-duty applications. Crafted from durable 6082 T6 aluminium, this compact 100x100mm truss is perfect for retail shop fittings, exhibition stands, banner frames, and recording studio speaker rigging. Available in multiple lengths and finishes, it offers a modular, customizable design that seamlessly fits low-clearance spaces while maintaining a clean, professional aesthetic.
Elevate your retail displays, exhibition booths, and interior designs with the Eagle TS104 100mm mini box truss. Engineered from high-strength 6082 T6 aluminium, this lightweight trussing system provides an exceptionally sturdy yet compact structure for light-duty rigging and decorative installations. Its modular design makes it an ideal choice for low-clearance stages, recording studios, and custom banner frames, allowing you to create eye-catching configurations that maximize your space without compromising on structural integrity.
Designed for seamless integration and ease of assembly, the TS104 mini box truss is compatible with standard accessories such as corner cubes and base plates to accommodate diverse project layouts. Whether you are setting up a temporary trade show display or a permanent architectural feature in a restaurant or cafe, this versatile trussing solution is available in multiple lengths and sleek finishes to match your aesthetic. Invest in a reliable, professional-grade setup that delivers outstanding versatility and visual appeal for any commercial or creative environment.
| Product Documents | ||
|---|---|---|
| TS104 Truss Loading Table | 108.29 KB | |
| TS104 Data Sheet | 18.18 KB |
| SKU | TRUS-ET104 |
|---|---|
| Model | Eagle TS104 |
| Pipe Compatibility | Not specified |
| Safe Working Load (SWL) | Depends on length and support. Refer to Loading Table |
| Certification | TUV Certified |
| Material | 6082 T6 Aluminium |
| Available Finishes | Aluminium, Black |
It is constructed using high-quality 6082 T6 Aluminium.

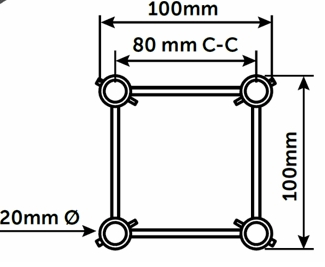

What are the tube and brace specifications?The main tubes measure 20mm in diameter with a 2.0mm wall thickness, and it has a brace diameter of 5mm with 10mm diagonal bracing.
What lengths and finishes are available?The TS104 mini box truss is available in lengths of 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, and 3.0m, and comes in Aluminium and Black finishes.
What are the common applications for this mini truss?It is ideal for light-duty applications such as banner frames, exhibition stand building, recording studio speaker rigging, lightweight lighting bars for stages with low clearance, and decorative use in stores, displays, restaurants, and cafes.
