Home LED Displays Installation LED Screen Cabinets Gloshine Vanish Series IP54 LED Screen Cabinet

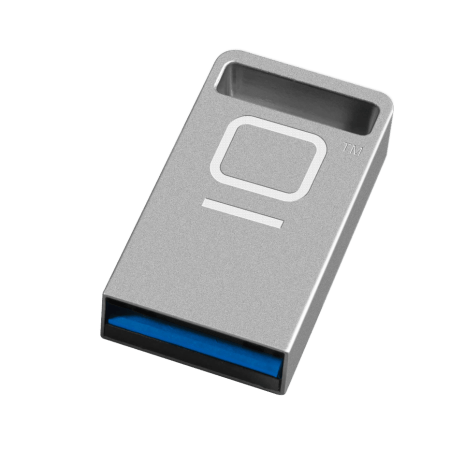

Obsidian Control Systems ONYX License Key- Essential 8 Universes
Back to products

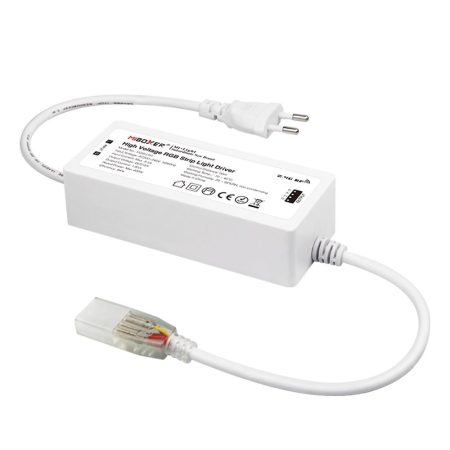

High Voltage RGB Strip Light Driver-POW-LH1 $108.35

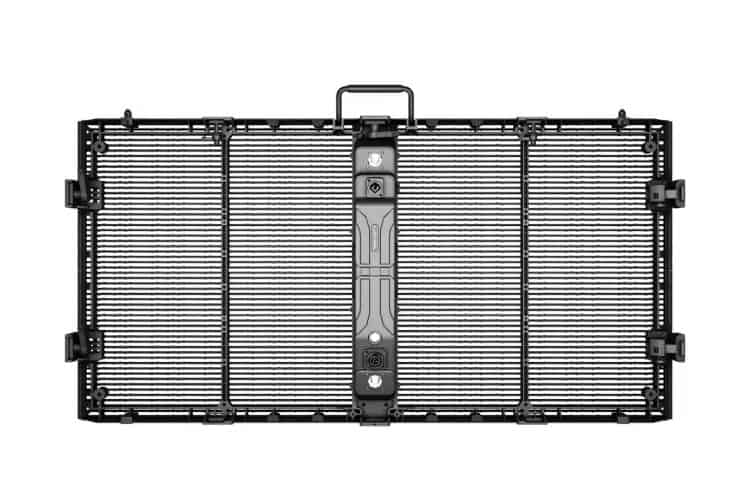

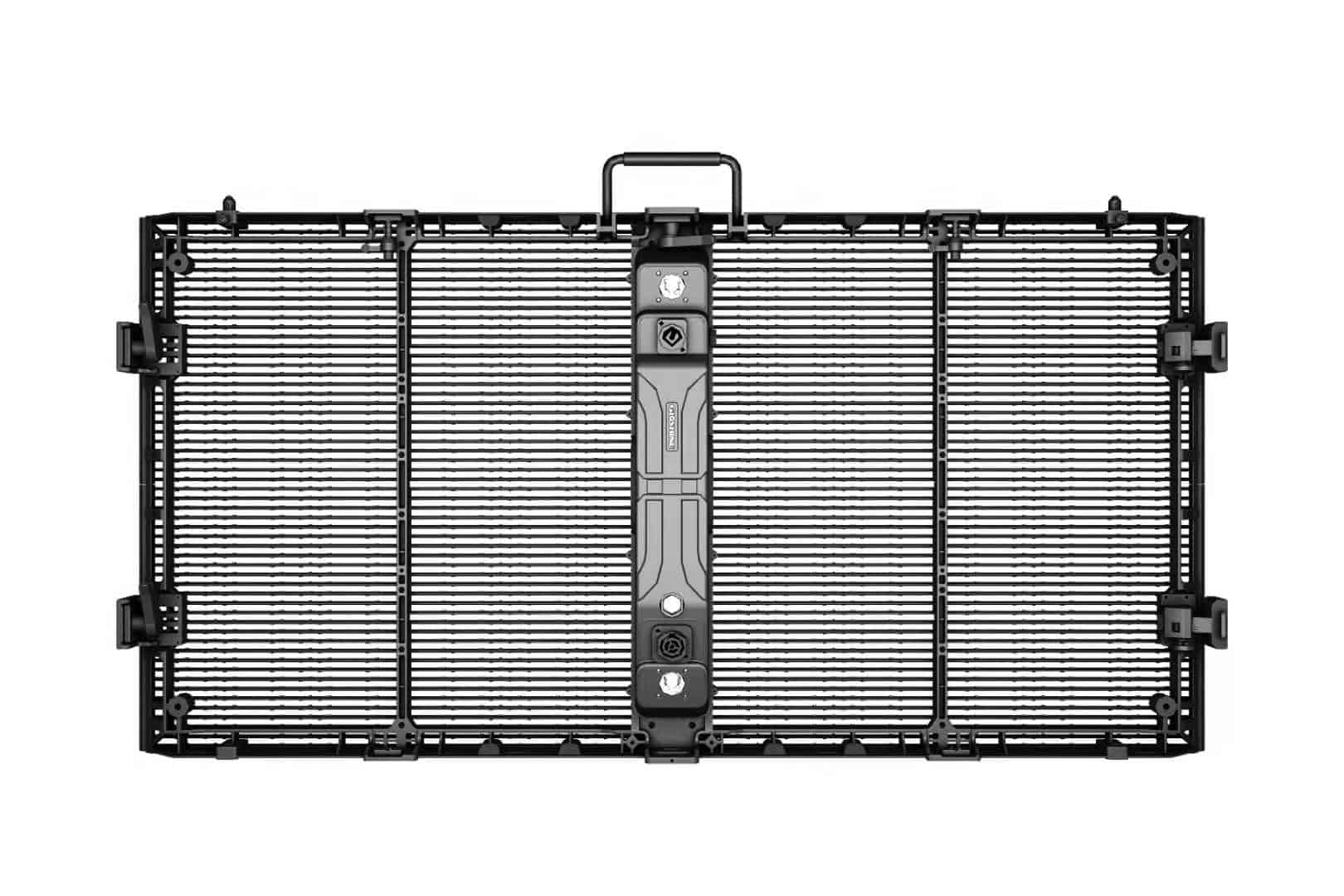

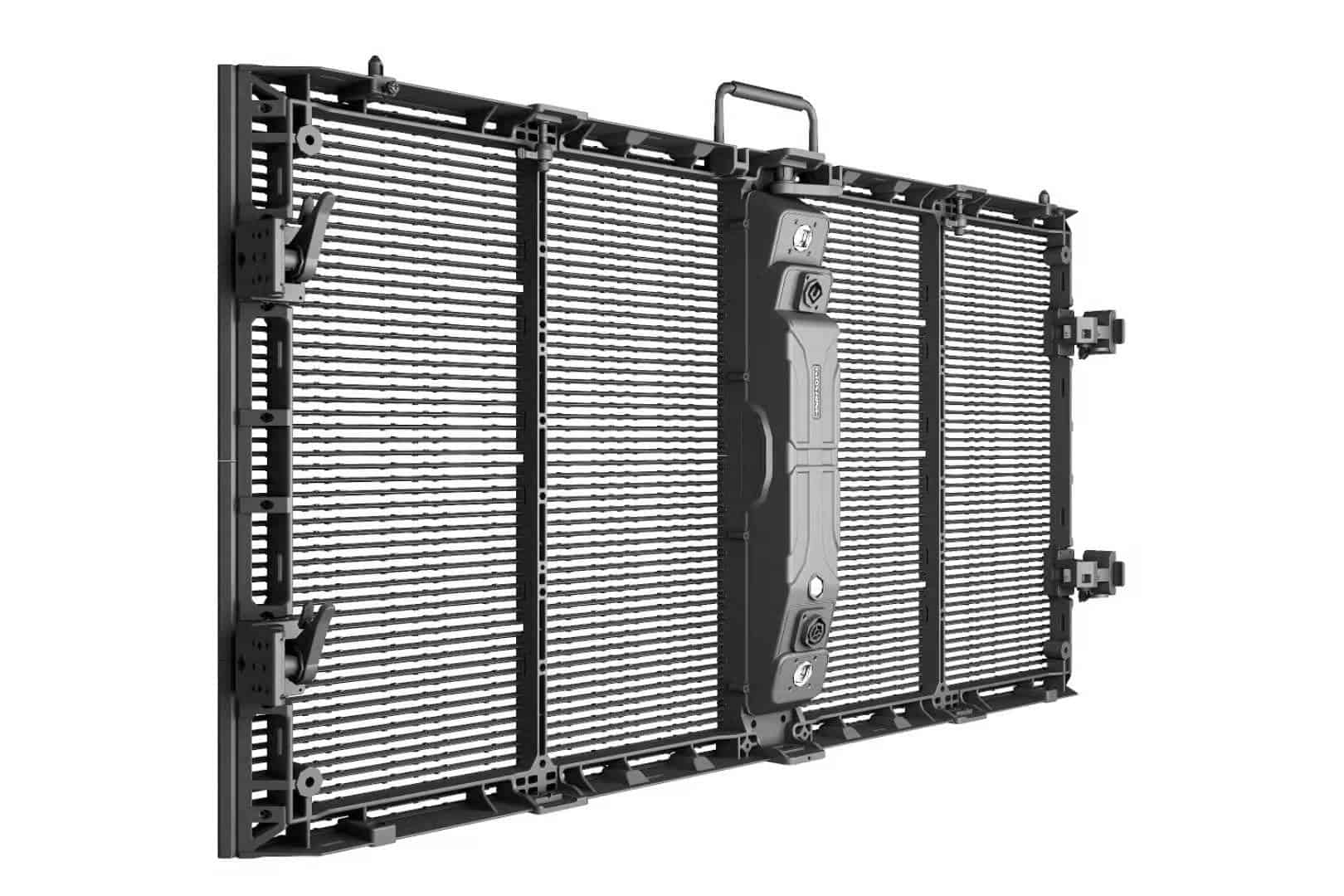

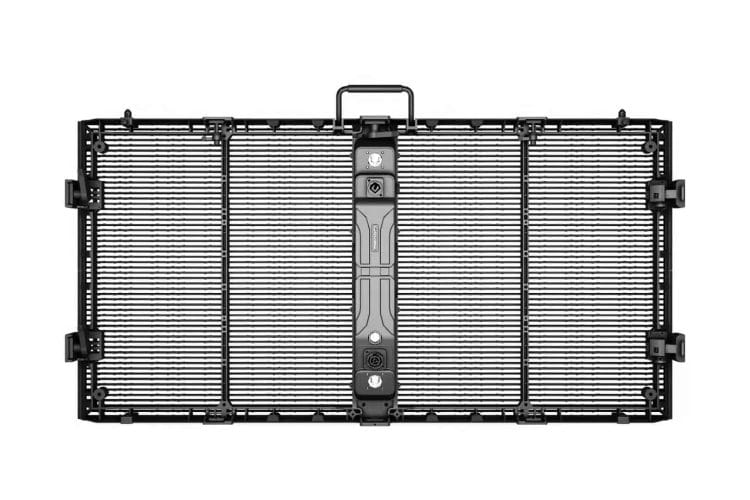

Gloshine Vanish Series IP54 LED Screen Cabinet

Send Enquiry

SEND US A MESSAGE

    CONTACT INFORMATION

    45/7-9 Percy St,
    Auburn NSW 2144

    02 9188 3955

    [email protected]

    Your personal data will be used to process your enquiry, support your experience throughout this website, and for other purposes described in our privacy policy.

    Facebook-f Linkedin-in Youtube Instagram

    The Vanish series are “transparent Led screen cabinets” rated IP54 for outdoor and indoor use. This creative solution makes installing LED screen at locations previously deemed not possible.

    In bright daylight when the screens are not turned on, they look like a large blind which can be made part of architectural design. The features and windows on the building behind the screen are all visible from the street and the building can have plenty of natural light and a clear view outside of windows. As it turns dark and the screens are turned on, it transformed the building facet into a large digital signage board.

    The Vanish series of LED cabinets are designed to have low wind load making it is safer for outdoor installations. Pixel pitch can range from 3.91 to 8.93mm depending on the size and location of your screen.

    Add to wishlist
    Category: Installation LED Screen Cabinets
    Share:
    • Description
    • Additional information
    • Q & A
    Description

    The Vanish series are “transparent Led screen cabinets” rated IP54 for outdoor and indoor use. This creative solution makes installing LED screen at locations previously deemed not possible.

    In bright daylight when the screens are not turned on, they look like a large blind which can be made part of architectural design. The features and windows on the building behind the screen are all visible from the street and the building can have plenty of natural light and a clear view outside of windows. As it turns dark and the screens are turned on, it transformed the building facet into a large digital signage board.

    The Vanish series of LED cabinets are designed to have low wind load making it is safer for outdoor installations. Pixel pitch can range from 3.91 to 8.93mm depending on the size and location of your screen.

    Additional information
    Weight 6.5 kg
    Dimensions 50 × 50 × 50 cm
    Pixel Pitch

    3.91-8.93

    LEDs

    SMD1921

    Colour Temperature

    6500-9500K

    Scan

    1/4-1/16

    Panel Dimension

    500X500MM

    Cabinet Material

    Die Casting Aluminium

    Average/Max Power Consumption

    <=350W/sqm Max <=120W/sqm Average

    Viewing Angle

    H:160 degrees V:140 degrees

    Refresh Rate

    1920/3840 Hz

    Gray Scale

    14-16bit

    IP Rating

    IP54

    Operating Humidity

    10%-90% RH

    Operating Temperature

    -20C to +45C

    Max Stacking

    15pcs

    Max Hanging

    15pcs

    Lifetime

    50,000hrs
