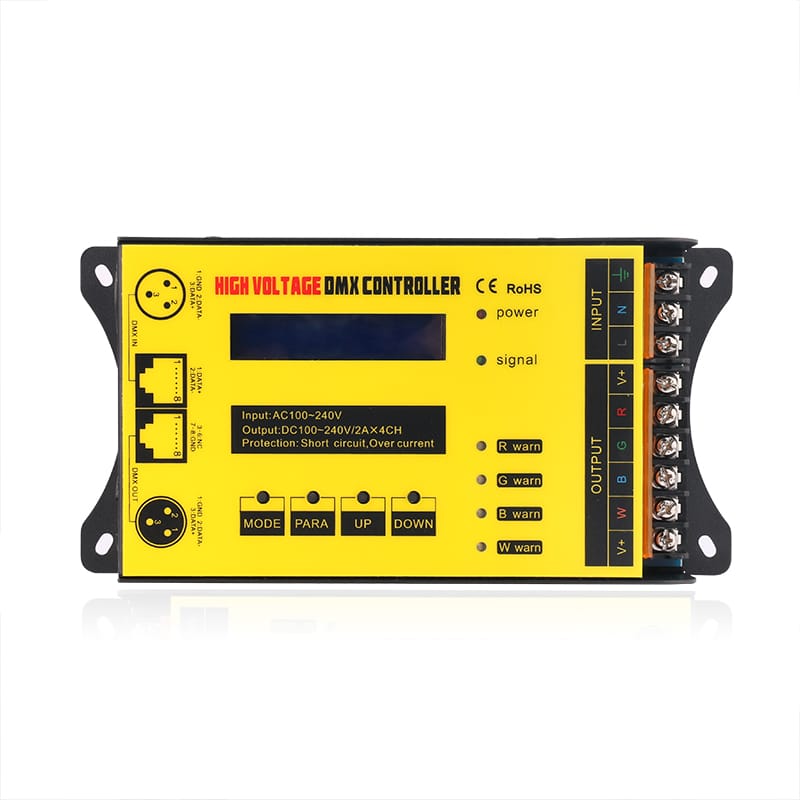

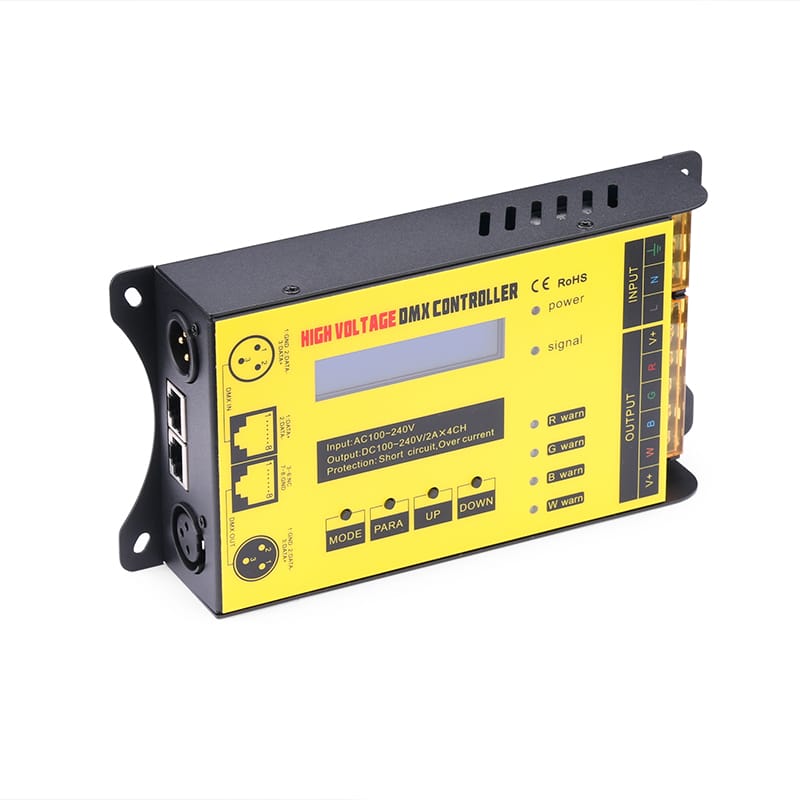

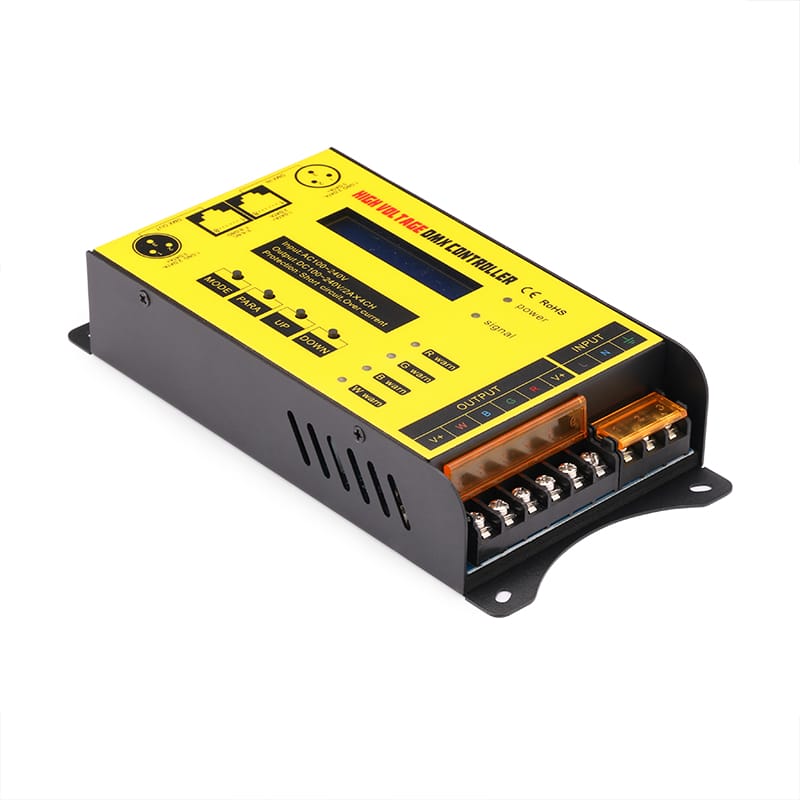

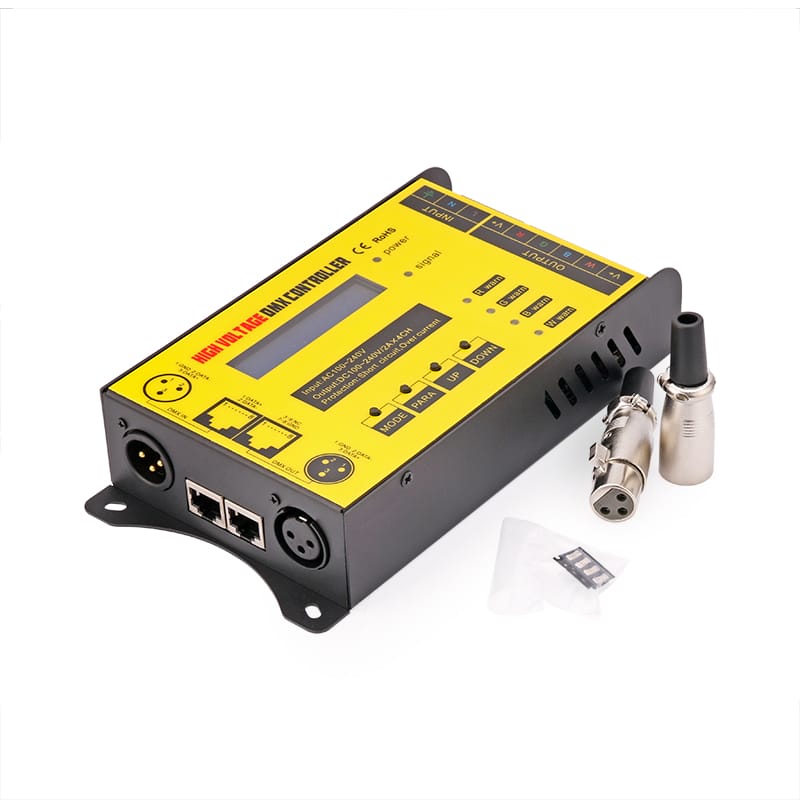

DMX300C DC100V~240V High Voltage LCD Display DMX Controller

$225.00

Send Enquiry

The DMX300C is a DC100V~240V  high-voltage LCD display DMX controller with short circuit protection. The DMX300C features an LCD digital interface display that can be used to control five lines of four channels (common anode) LED lamps to about 34 change mode options. It is also capable of accepting the DMX512 international standard digital control protocol.

This control driver features a maximum output current of 4*2A, and each has a short circuit protection function and an integrated 20% fuse protection for overload.

The DMX300C High Voltage LCD Display DMX Controller can perform a standalone operation, self-connect online, and accept standard DMX512 console control signals. As the customer desires, the light display changes ensuring that strobe, jumping, and gradual change can be achieved.



FacebookTwitterGoogle PlusLinkedin

Additional information

Working Temperature

-20-60℃

Power Supply Voltage

AC100V~240V 50/60HZ

Output Voltage

DC 100V~240V

Output Connect Way

Common anode 5 lines, 4 channels

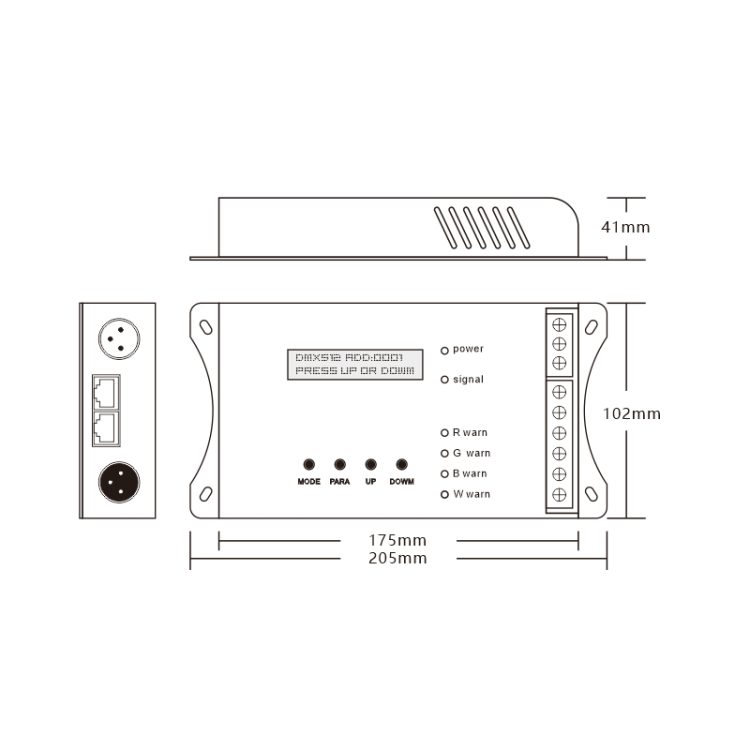

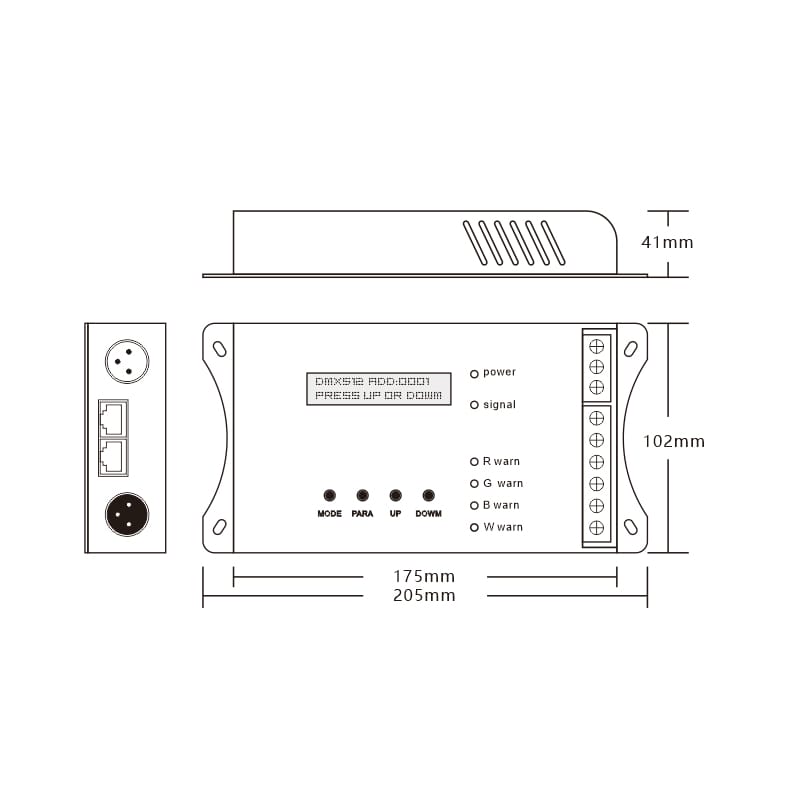

External Dimension

L205*W103*H40 mm

Packing Size

L225*W120*H55 mm

Net Weight

698.5g

Gross Weight

900g

Static Power Consumption

<2W

Maximum Output Current

4*2A, each circuit has a short-circuit protection function and 20% fuse protection function for overload.

Dimming Frequency

980Hz

Maximum Power Output

880W/110V, 1760W/220V
