Obsidian Control Systems ONYX NX P Wing
SEND US A MESSAGE

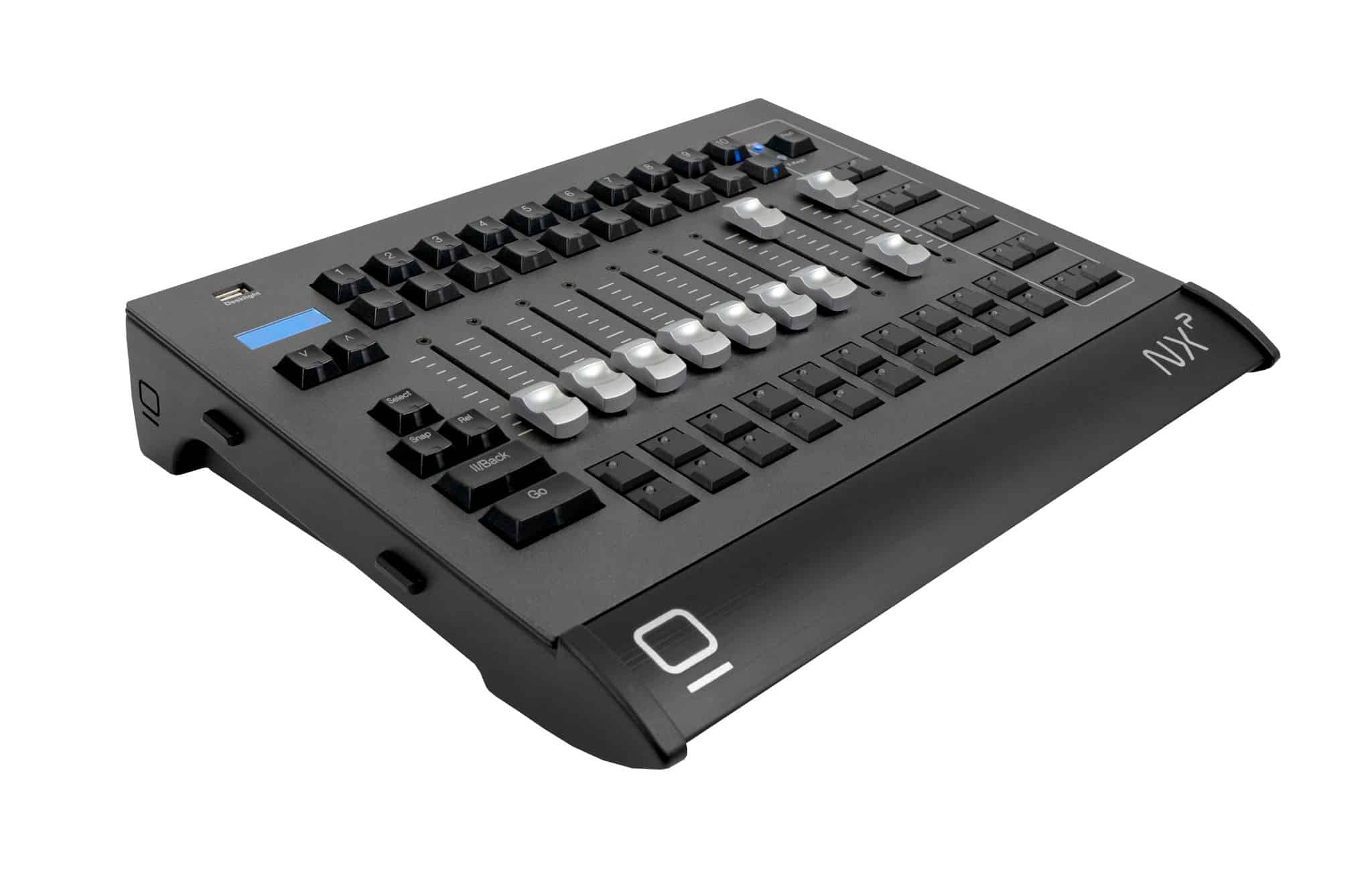

The NXP is a motorized fader wing for ONYX. The ideal expansion for the NX1 console and ONYX PC systems, it replicates the full playback section of the NX1 console. Four integrated DMX ports provide instant connectivity to the lighting system.
Multiple NXP wings can be connected to any ONYX console or PC system, expanding direct access with 20 playbacks at a time. The flexible button array can be mapped to playback control or powerful function keys. The NXP replicates the layout and all functionality of the NX1 and NX4 console surfaces so all operation is seamless and intuitive.
A simple magnetic alignment system allows attachment on any side of the NX1 console or NXK command pad. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.
- Length: 298.5 mm (11.75 in.)
- Width: 373mm (14.7 in.)
- Height: 71 mm (2.8 in.)
- Weight: 4.5 kg (9.9 lbs.)
