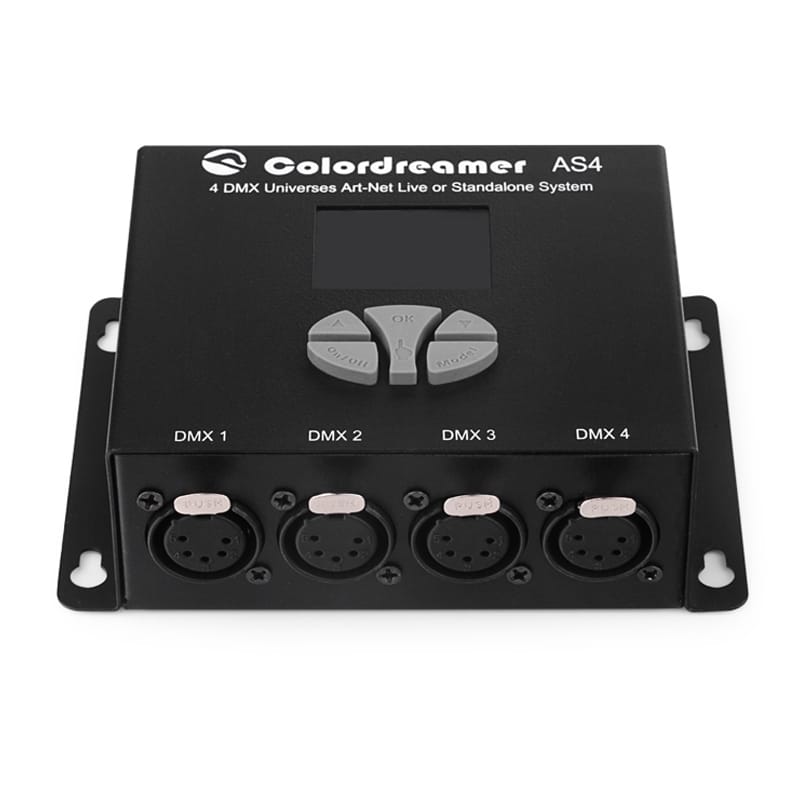

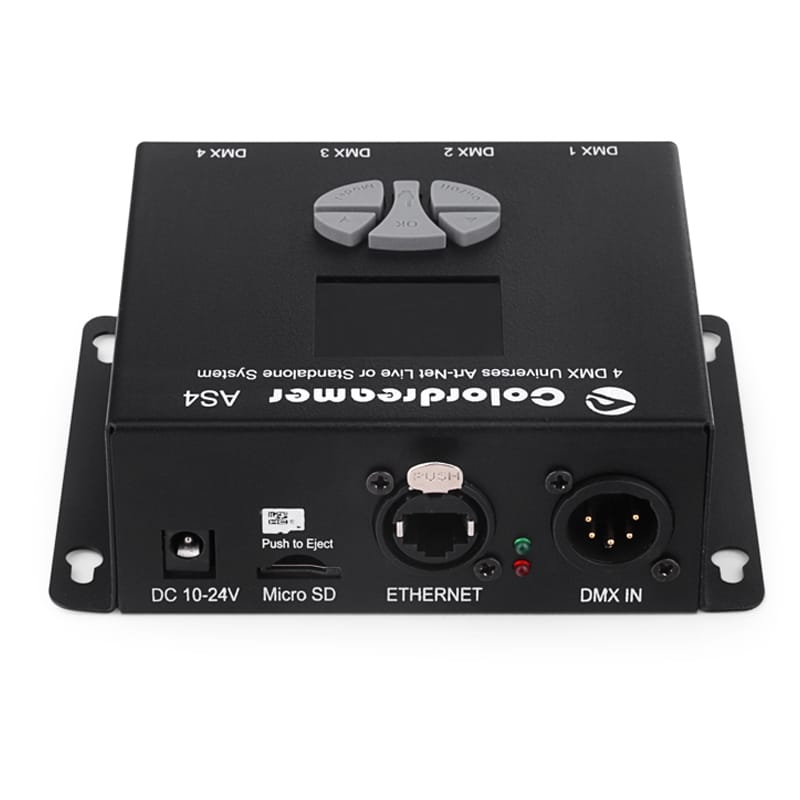

Artnet Live or SD Card Standalone Controller – Titan AS4

Titan AS4 DMX controller allows the user to preprogram lighting effects using Colordreamer Software and save it into an SD card. It has a built-in slot for SD card that allows user to run lighting effects even without a computer or console connected.

It is especially designed so that ethernet port can be used for live mode when working with Colordreamer LED software.

This product comes with a special function that gives the user the ability to trigger lighting effects using external device via DMX input.

This powerful product has a built clock and allows the user to run different effects at different time. It also gives the user the ability to do a standalone playback schedule in the Timeline of Colordreamer Software. Users can connect multiple AS4 controllers and run them altogether at the same time.

Category:
FacebookTwitterGoogle PlusLinkedin

Additional information

Power Input

10-24VDC

Input Protocol

ARTNET / SD Card / DMX IN

Refresh Rate

40Fps

Defaulty IP

192.168.1.100

Defaulty Subnet

255.255.255.0

Cable

Net cable

DMX512(Out)

4X512 Channels

Ethernet Port

RJ45

DMX512 Ports

3Pin/5Pin XLR Female

SD Card

Max 32GB

Housing

Black Metal

IP

IP20

Dimension (body)

110*101*43mm

Dimension (with brackets)

134*101*43mm

Certificate

CE
