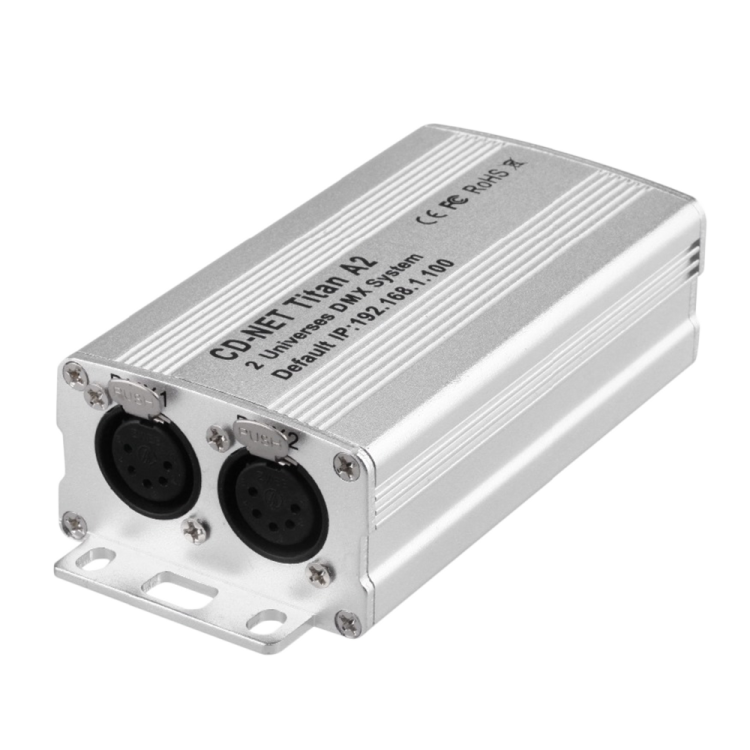

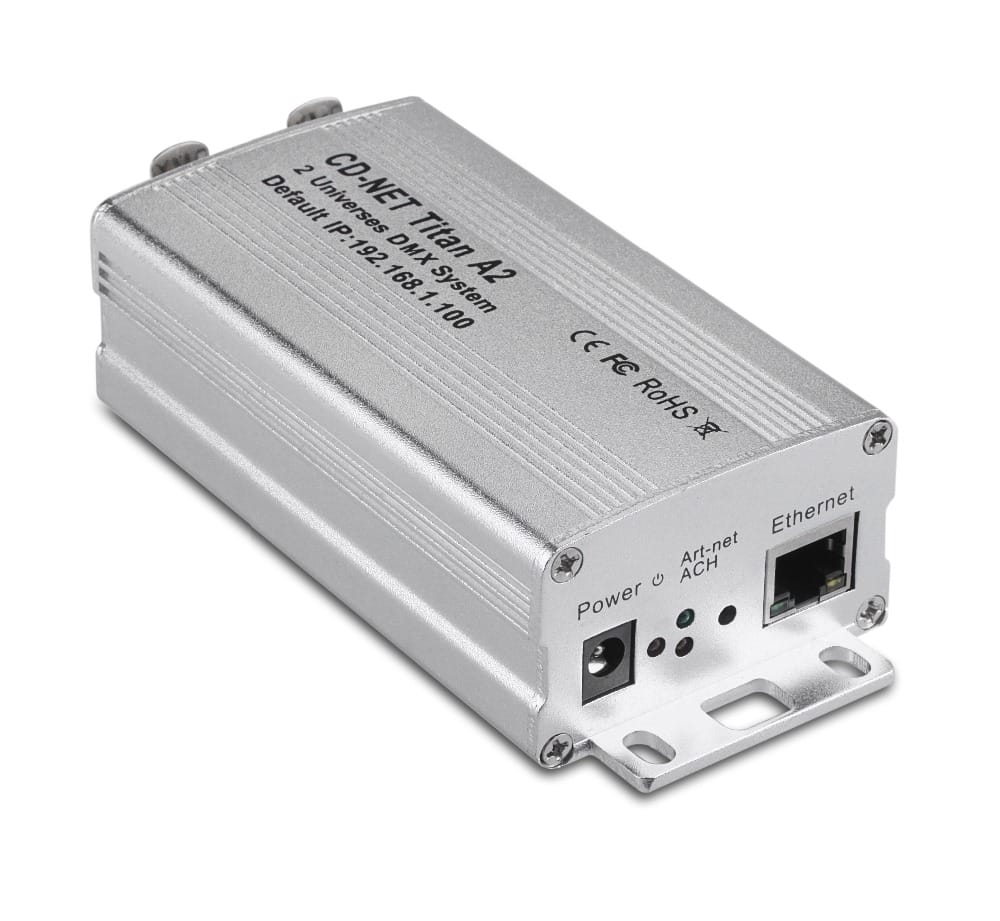

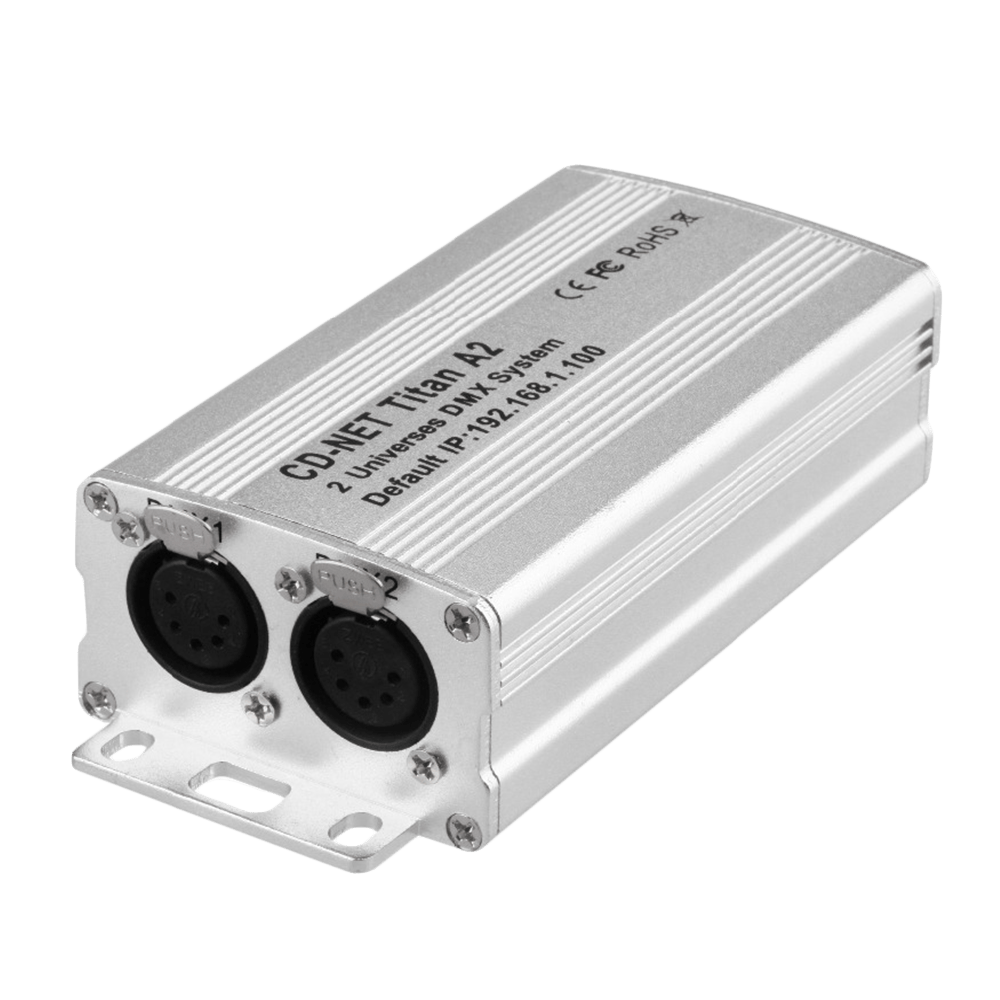

Colordreamer Titan A2 Artnet to DMX Controller
Colordreamer Titan A2 Artnet to DMX Controller 1

Colordreamer Titan A2 Artnet to DMX Controller

The Colordreamer Titan A2 features 2 universal DMX ports and 1 RJ45 TCP/IP 10/100M Ethernet port. This Artnet to DMX node reliably distributes DMX512 data over long or short distances using Ethernet network.

With this device you can take full advantage of pixel mapping and voxel mapping. The device is very easy to install and ready within seconds after start-up. The Colordreamer Titan series offers powerful features, especially in combination with Colordreamer software.

An HTTP Merge is automatically available for two Art-Net sources. If required, you can access and change specific device settings using the built-in web configuration tool.

Category:
FacebookTwitterGoogle PlusLinkedin

Additional information

Model

Titan A2

Power Input

100-240VAC
50/60Hz

Input Protocol

ARTNET

Output Protocol

DMX512

Refresh Rate

40 Fps

Default IP

192.168.1.100

Default Subnet

255.255.255.0

Cable

Net cable

DMX512 (Out)

2×512 Channels

Ethernet Port

RJ45

DMX512 Ports

3Pin/5Pin XLR Female

Housing

Silver Metal

IP

IP20

Dimension (body)

115x*63*38mm

Dimension (with brackets)

140*63*38mm

Certificate

CE

Download
