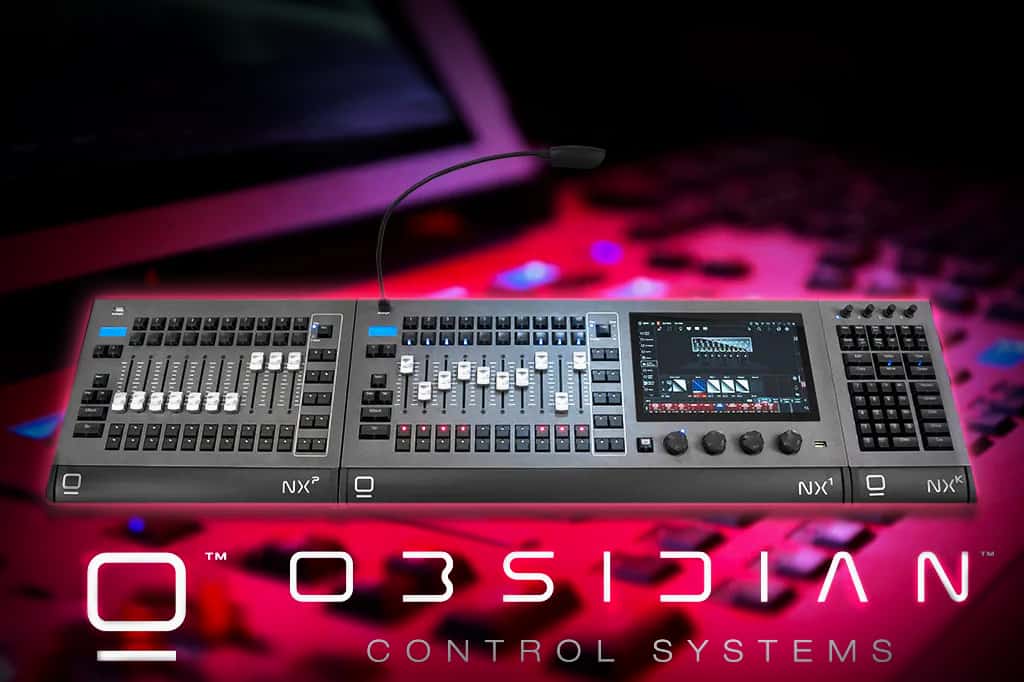

Obsidian will launch NX1 with NX P wing and NX K control surface during the upcoming April 26-29th Frankfurt Prolight+Sound show.

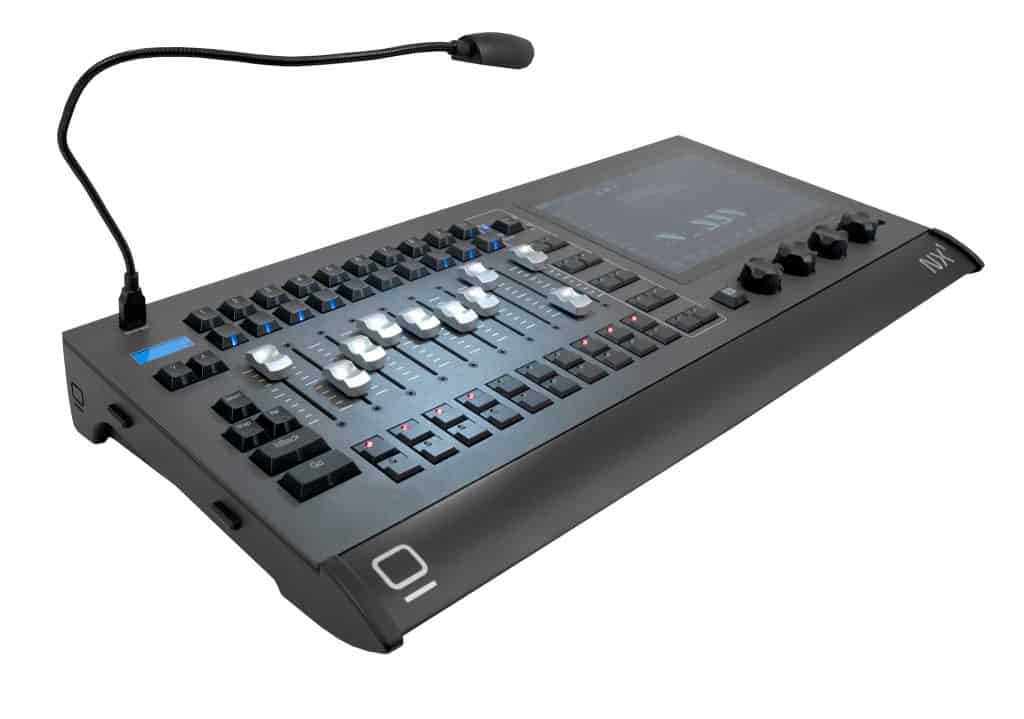

NX1: Powerful, Portable, Compact, Expandable.
A portable yet full-featured lighting console running Obsidian’s powerful ONYX platform. Utilizing the full ONYX Operating System, the NX1 offers a slate of professional features like a high-brightness 10.1″ HD multi-touch screen; 4 assignable parameter encoders; 10 full motorized playbacks with four freely assignable buttons plus an extra playback and function key hybrid array. A dedicated Master Go section rounds out the efficient front panel design.
The latest in industrial components allows for fast boot times, instant operation and the ability to process 8 Universes right inside the console. With four DMX ports, a Gigabit network port for up to 8 Universes of Art-Net, sACN plus the ONYX X-Net protocol, the NX 1 has ample connectivity and power for a wide variety of shows and applications. One additional touch monitor is supported for even more direct access at anytime. The NX1 is expandable with the dedicated NX K keypad and the NX P motorized playback wing. A simple magnetic alignment system allows attachment on any side of the NX1.

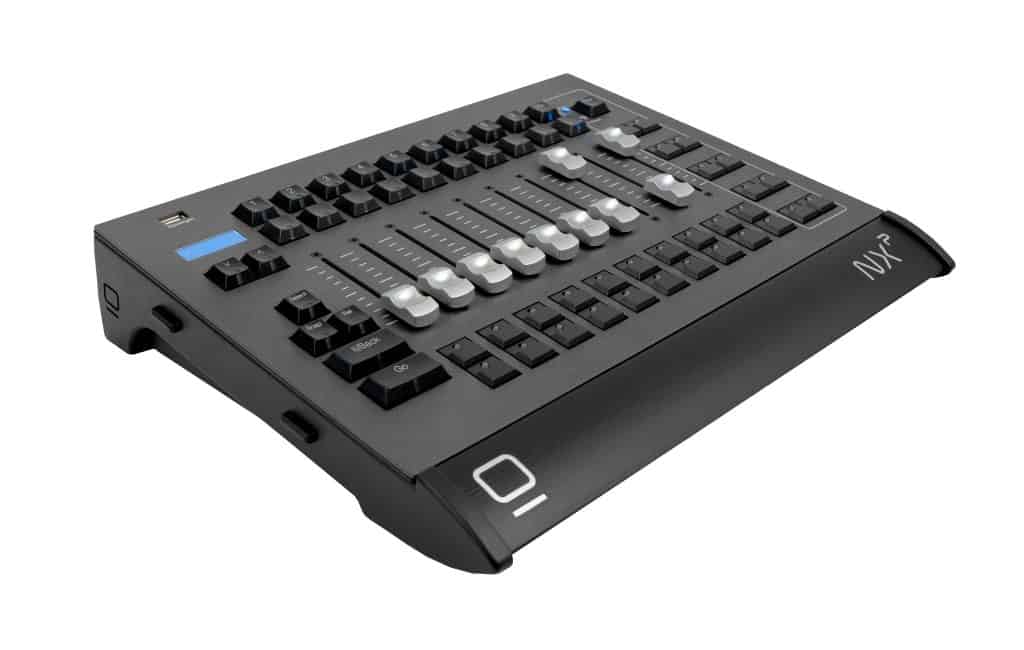

NX P: The New "Play"
A compact, motorized fader wing for the ONYX platform. The ideal expansion for any ONYX 1 console and ONYX PC systems, it replicates the full playback section of the NX1. Four integrated DMX ports provide instant connectivity to the lighting system. Multiple NX P wings can be connected to any ONYX console or PC system, expanding direct access with 20 playbacks at a time. The flexible button array can be mapped to playback control or powerful function keys.
The NX P replicates the layout and all functionality of the NX1 and NX4 console surfaces so all operation is seamless and intuitive. A simple magnetic alignment system allows attachment on any side of the NX1 console or NX K command pad.

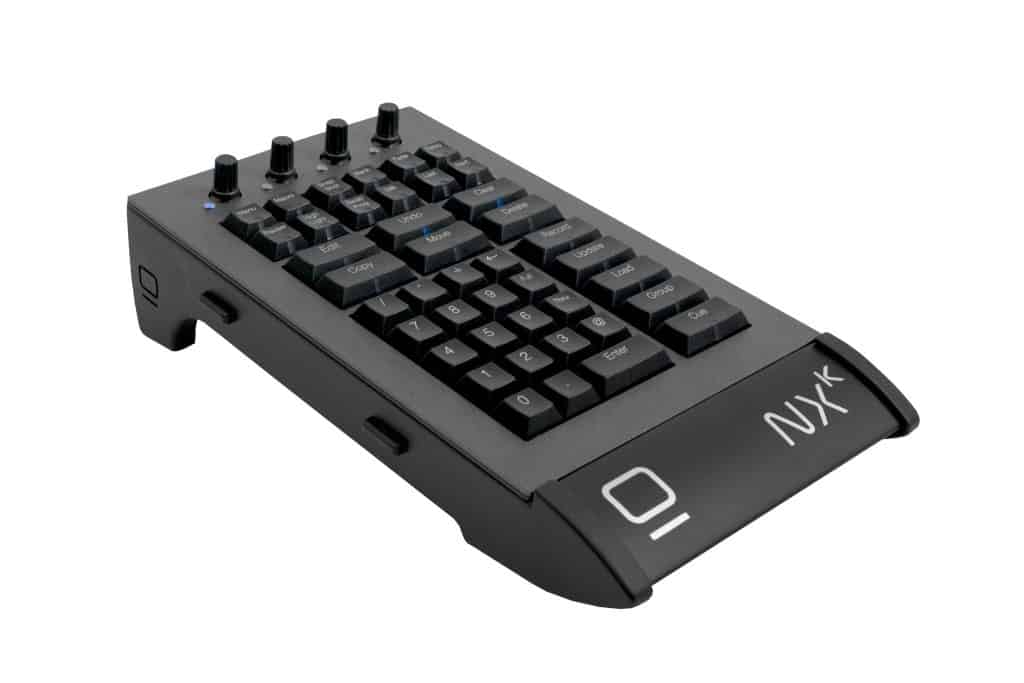

NX K: K for Keypad
A small USB-powered control surface for ONYX. The ideal companion for the NX1 console and ONYX PC systems, it replicates the full keypad and command section of larger consoles. Four encoders complete the programming experience for fast and direct parameter access. A simple magnetic alignment system allows attachment on any side of the NX1 console or NX P motorized fader wing.
