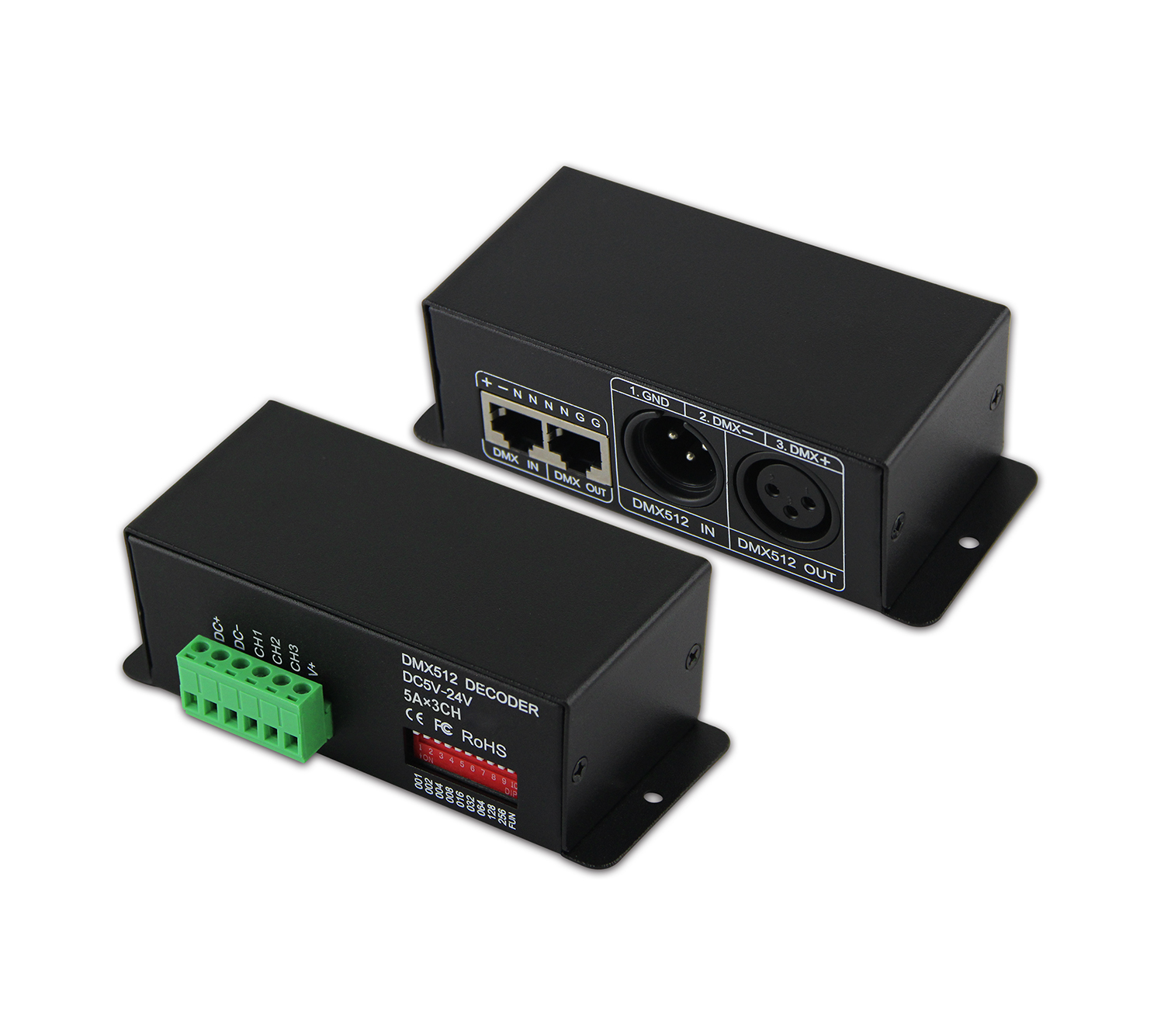

WORLD UNIQUEEN WU-803 15A 3-Channel Constant Voltage DMX Decoder

WORLD UNIQUEEN WU-803 15A 3-Channel Constant Voltage DMX Decoder

$40.55

The WORLD UNIQUEEN WU Series Decoders are specifically developed for constant voltage LED lamps.

Send Enquiry

The WORLD UNIQUEEN WU-803 carries an advanced micro-computer control technology that is able to convert and transfer standard DMX512/1990 signal to PWM signal. In addition, this device features 3 output channels (Max Load Current: 5A each).

With this decoder the user has the ability to choose and control various LED products, such as RGB LED lamps & tubes, LED wall washers and many other compatible fixtures. As a result, this device allows endless possibilities of light shows.

Features

  • Automatically adapts input voltage DC12V-24V
  • Input: standard DMX512 signal with 3-digit display showing DMX address
  • 3 output channels (256 scale each)
  • 10 self-changing modes, 8 speed levels
  • Power loss memory function

Category:
FacebookTwitterGoogle PlusLinkedin

Additional information

Input Voltage

DC12-DC24V

Max Load Current

5A/CH*3

Output Power

18W/360W(12V/24V)

Output Scale Level

256 levels

Input Signal

DMX512/1990

Output Signal

3 Constant Voltage PWM

Output DMX Channel

3CHs or 4CHs(4th CH is shutter strobe)

DMX512 Socket

Standard XLR-3R

Dimension

L125*W52*H40(mm)

Weight(G.W)

315g
