WORLD UNIQUEEN WU-820 DMX-SPI IC DATA Decoder

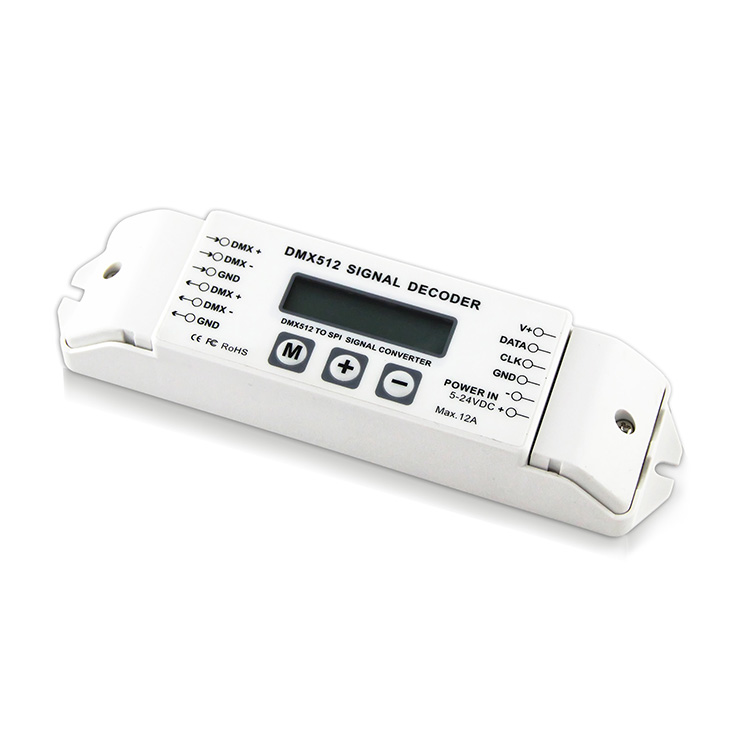

WORLD UNIQUEEN WU-820 DMX-SPI IC Data Decoder

$60.85

The WORLD UNIQUEEN WU Series Decoders are specifically developed for constant voltage LED lamps.

Send Enquiry

The WORLD UNIQUEEN WU-820 carries an advanced micro-computer control technology that is able to convert and transfer standard DMX512/1990 signal to various LED driving IC signals. In addition, this device features 510 driving channels, plus it allows LED lamps to be controlled by DMX512.

Features

  • Automatically adapts input voltage DC5V-24V
  • Input: standard DMX512 signal with LCD display showing DMX address
  • Supports various LED colour driving ICs
  • Master & slave mode support
  • Over current fuse protection at output port
  • Wrong wiring protection at DMX port

Category:
FacebookTwitterGoogle PlusLinkedin

Additional information

Mode

DMX512 DATA Decoder

Input Voltage

DC5V-DC24V

Input Signal

DMX512/1990

Output Signal

6803/8806/2811/2801/3001/9813 selectable

Driving Channel

510 Channels

Control Pixel

170

Dimension

L176*W46*H30(MM)

Weight(G.W)

180g
