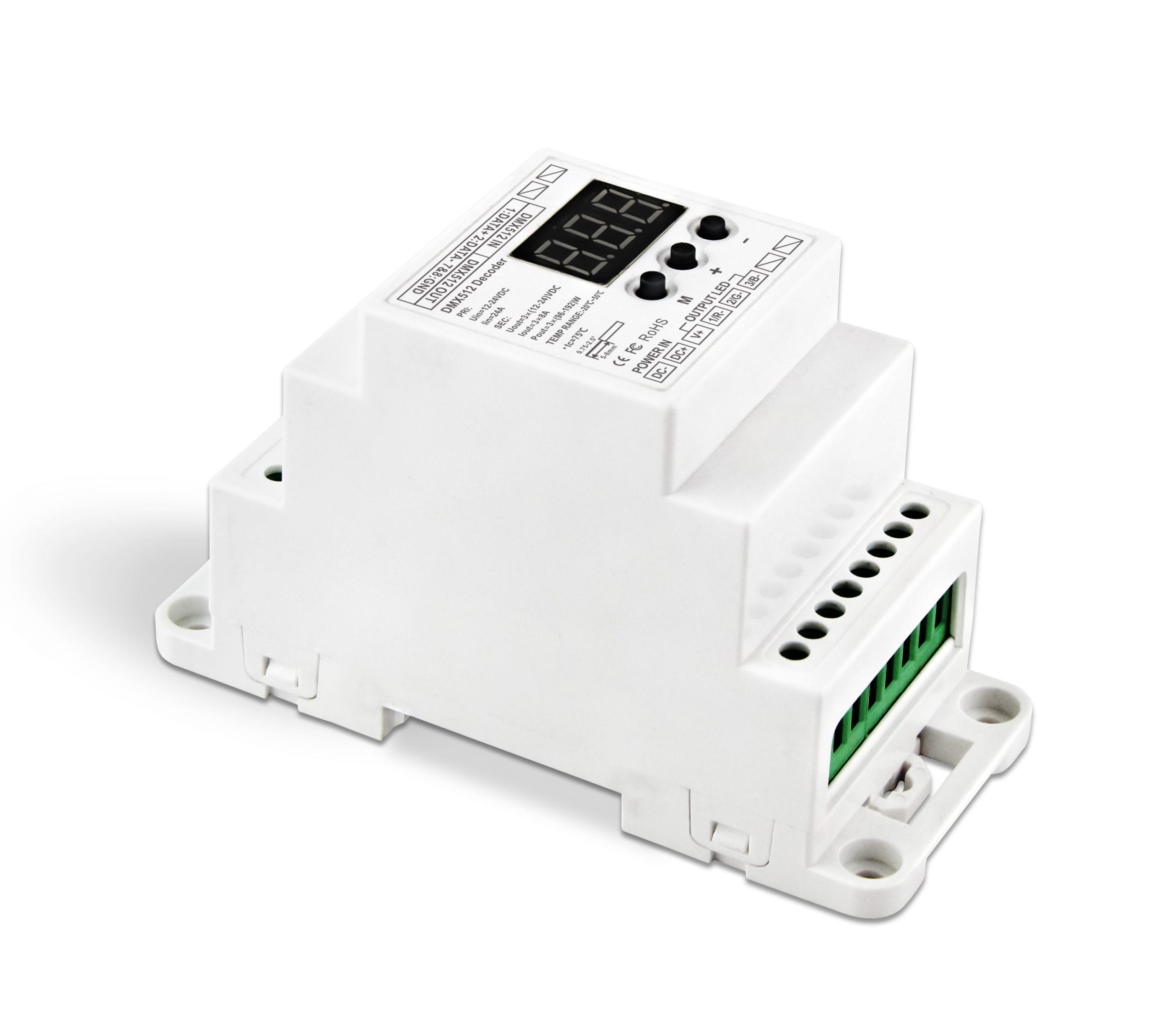

WORLD UNIQUEEN WU-833-DIN-RJ45 3-Channel DIN Rail Constant Voltage DMX Decoder

$49.95

The WORLD UNIQUEEN WU Series Decoders are specifically developed for constant voltage LED lamps.

Send Enquiry

The WORLD UNIQUEEN WU-833-DIN-RJ45 carries an advanced micro-computer control technology that is able to convert and transfer standard DMX512/1990 signal to PWM signal. In addition, this device features 3 output channels (Max Load Current: 8A each).

This device can be used as DMX512 master or as DMX decoder to connect a computerised digital output console with an analog silicon case, plus it controls LED lamps of architecture and generic lighting.

Features

  • Automatically adapts input voltage: DC12V-24V.
  • Input: Standard DMX512 signal; 3-digital-display shows DMX address code.
  • 3 channels output; logarithmic dimming; lamplight soft & stable without strobe flash.
  • DMX Master mode & slave mode available.
  • 8 colour changing modes and 10 speed scales are built-in.
  • Indicator of the DMX512 signal receiving status.
  • Power loss memory function.
  • Wrong wiring protection at DMX port + over current protection and short circuit protection.
  • The DIN rail style design facilitates the installation of large-scale projects.

Category:
FacebookTwitterGoogle PlusLinkedin

Additional information

Mode

3CH Constant Voltage decoder

Input Voltage

DC12-24V

Max load current

3CH*8A

Max Output Power

288W(12V)
576W(24V)

Grey Scale

4096 levels*3

Input Signal

DMX512/1990

Output Signal

Constant Voltage PWM

Decode Channel

3CH

DMX512 Socket

RJ45

Dimension

L111*W46*H66(MM)

Weight(G.W)

138G
