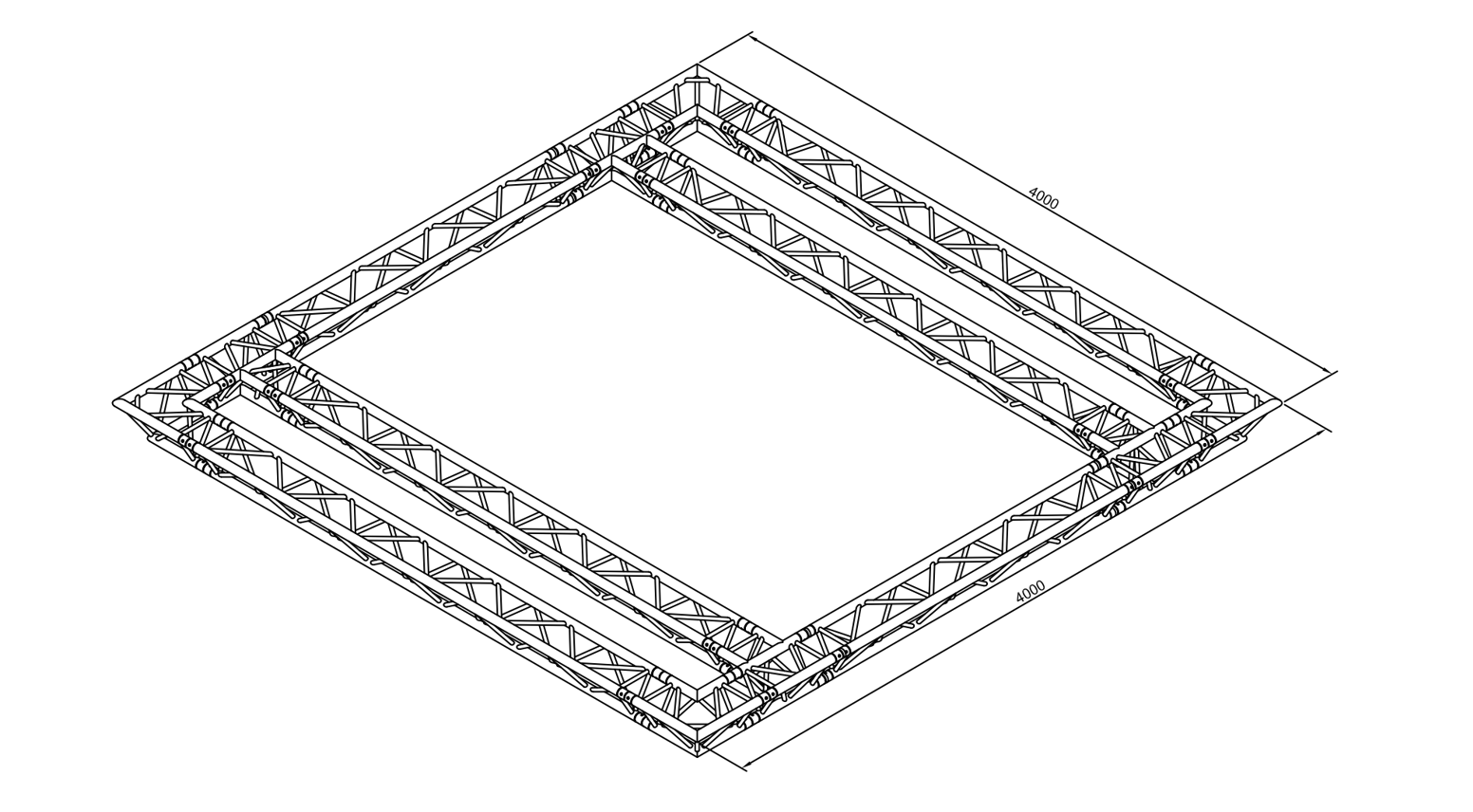

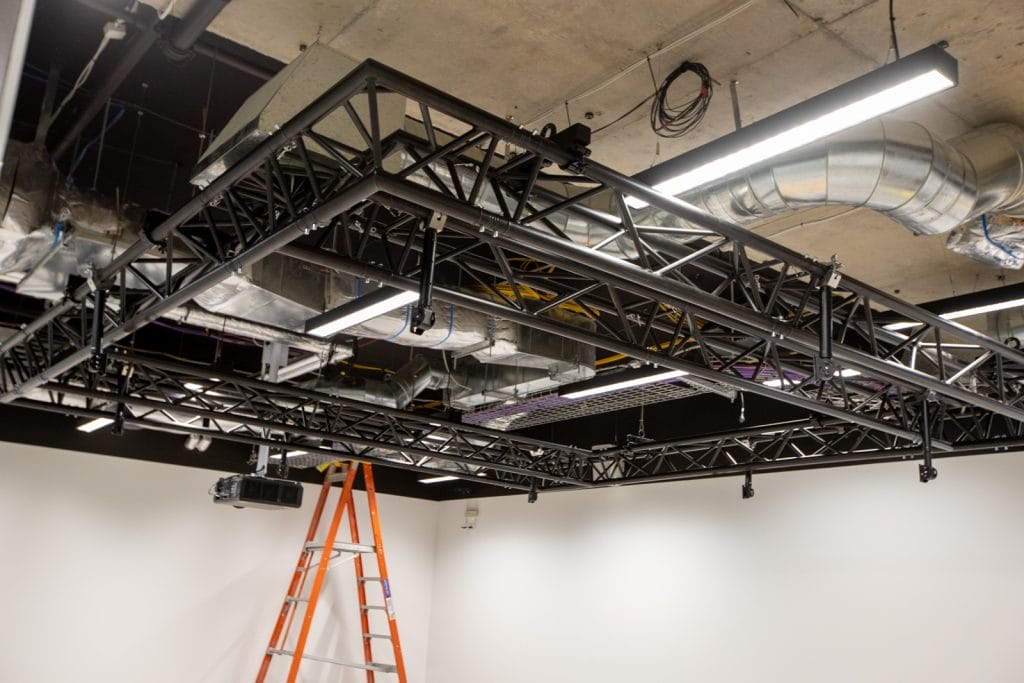

The following tailored structure was constructed for the University of Technology in Sydney, and specifically for their Interactive Lab in their newly-built Tower 2. It is a square 4x4m truss creation, specially crafted to lift 8 Genelec Speakers forming a circle.

In order to build this piece, we used a plethora of K33 290mm Heavy-Duty Tri Trusses, in black. To achieve the 4×4 format we custom made K33 290mm Spigot Box Trusses, plus 4x (in total) KKM K33 290mm 2-Way 90 Degree Aluminium Corners (Apex IN) were utilised to bind all of the sides together.

In addition, parallel to 2 of the sides, and approximately 50cm apart of them, another line of customised K33 trusses were attached to finalise the design. 8x KKM Truss Lifting Adaptor Brackets with Eye Ring and Dual Clamps, that have a load capacity up to 500kg, were mounted on all 4 sides (2 brackets per side), as they are really strong, durable, and ideal for permanent installations, such as this one.

The services we provided include truss drawing, manufacturing, engineer certification and installation.
